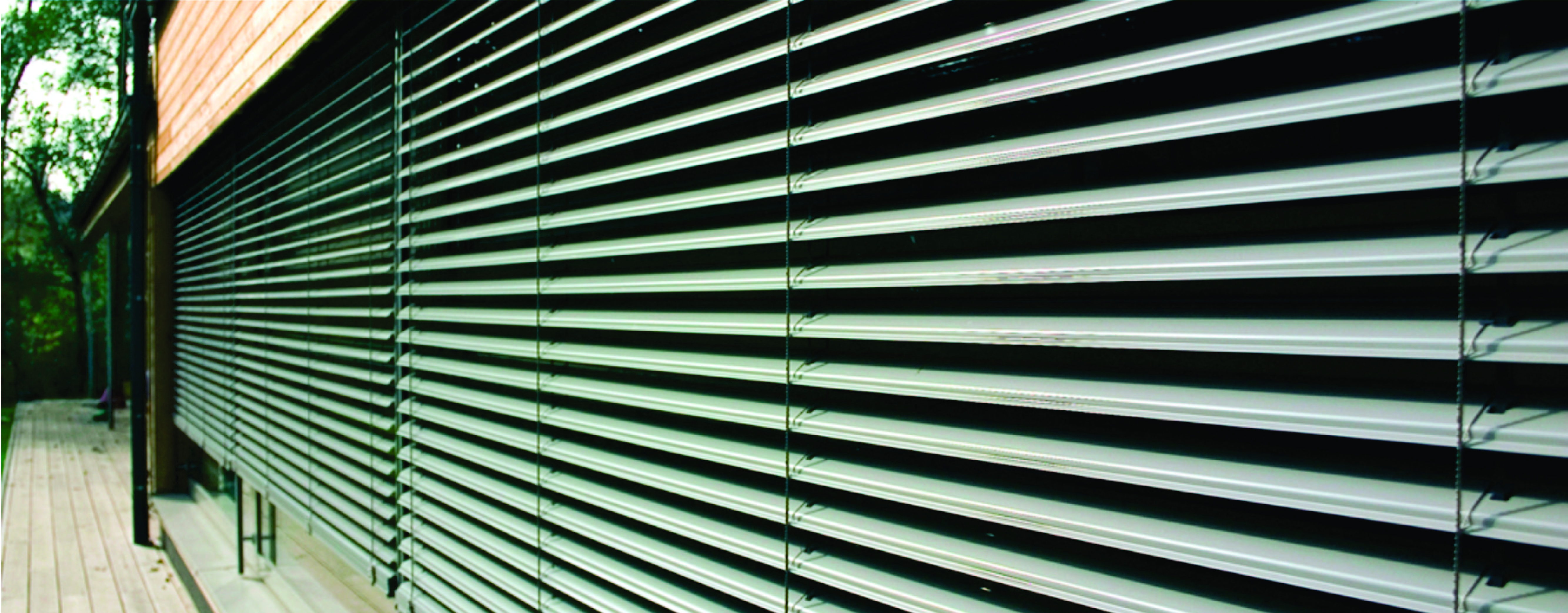

Design daylight with Helioshade ® external blinds and Venetians range. It’s the advanced external
blinds / venetians system that provide optimal heat protection and unsurpassed light control.
Perfect for domestic or commercial environments, the slats let in natural light and sunlight through
whilst minimising uncomfortable hothouse effects and eliminating blinding glare.
The elegant slats can be set to any position by raising, lowering and tilting to allow room
temperature and light level to be perfectly matched to user requirements. When fully retracted
system provides a completely un-obstructed view.
Featuring a range of stylish 60/70/80/90mm curved and flat slats with baked enamel finish offering
options such as rolled edges to provide extra stability/anti vibration, Helioshade external blinds
and venetians suit any external façade and comes in a range of modern designer colours and can be
controlled by switch, hand held remote control or automated building management systems.
Unaffected by extreme temperature changes, Helioshade external blinds and venetians reduce the sun’s
penetration by up to 90% + providing huge air conditioning cost efficiencies. Whether you are an
architect looking for a solution to help attain a Green Star™ rating for an office block or you’re
conscious about your own needs in the home –the Helioshade external blind and venetian range has
your environmental concerns covered.
A popular addition to the UMBRA’s range, the motorised external blind / venetian is practical and
robust – satisfying the most ambitious design demands of modern architecture.
DIFFERENCE FROM OTHER BRANDS:
- Automated Wind/Sun/Rain-sensing controls to tilt and retract blinds when needed
- UV resistant components, lifting tapes and ladder cords for extended life in exposed
environments
- Extruded aluminium base rail profile for increased stiffness and rail weight
- Extensive range of Slats to suit every application for both commercial and domestic
- Precision Extruded Drive shaft for fine tilt control
- Direct drive motor for increased performance and reliability. Available with integrated
- Full 5 year warranty
- Integrated heavy duty side cable / guide attachment head for increased wind resistance
- High grade stainless steel fixtures suitable for coastal environments
- Customised pelmets to suit blind size and project requirements
FEATURES:
- 5 year warranty
- Width 650-5000mm
- Maximumdrop 5000mm
- Available in white, silver, dark silver, bronze and dark grey
- Motorised operation
- Remote control option
- Automatic control with optional sun and wind sensor
- Integrates with building management systems
SPECIFICATIONS:
- 58 x 56mm galvanised steel headbox with 14mm extruded aluminium turning shaft
- 80mm wide curved, 0.45mm aluminium louvres with rolled edges for added strength
- Fixing: galvanised top or face mounting brackets
- Pelmet option: 120mm deep, depth equals height of stacked louvres
- UV resistant polyester cords
GUIDING OPTIONS:
- 2mm stainless steel cable guiding – sheathed in PVC for added anti-corrosion and noise reduction
- 18 x 36mm extruded aluminium side channel with noise reducing lining and bottom limit stopper
- Adjustable fix brackets, cast zinc with aluminium adjustment piece. Adjust side guides from 55
to74mm from wall
